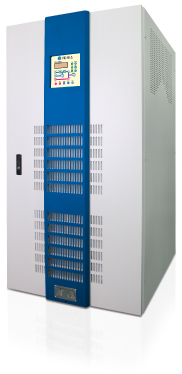

▶ TSU-3000 Series UPS is the latest technology ALL IGBT product and is a transformerless UPS that implements DSP control. It is a high efficiency, high power factor uninterruptible power supply.
- All IGBT type control such as rectifying section and inverter section
- High frequency PWM instantaneous value control
- Precision control with DSP
- Reliable transformerless control
- Easy to change battery cells
- High efficiency, high power factor control
- Commercially applied switching frequency 5~7.5kHz, 12~15kHz
- Remote Network Monitoring (SNMP) function: Option
- ECO mode operation function / Operating efficiency more than 97%
•

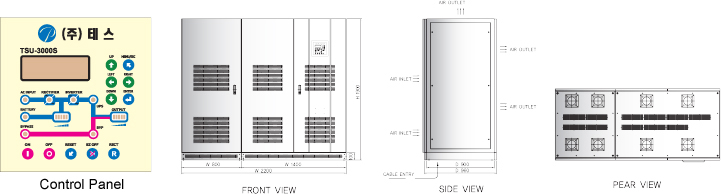

DRAWING
•
SPECIFICATION
TYPE
TSU-3000S
MODEL Name
3010
3015
3020
3030
3050
3075
3100
3120
3150
3200
3300
3400
3500
Capacity(KVA)
10
15
20
30
50
75
100
120
150
200
300
400
500
AC input
Constant
3-phase 4-wire system (3-phase 3-wire system available)
Rated voltage
380/220V
(200 to 440V available)
Input allowable range
±15% (rated), -50% (50% load)
Rated frequency
60/50
Hz
Frequency tolerance
bypass
: ± 2Hz 9Max ± 5Hz), rectifier : 45 ~ 65Hz
THD
5% or less
Input power factor
0.99
or more
Cooling method
Rectifier control method
IGBT PWM control method
Inverter control method
IGBT PWM control method
Transfer method
Non-instantaneous transfer
Input power
Rated voltage
1ø 220V
± 10%
3ø 380V
± 10%
Rated frequency
50Hz,
60Hz ± 5%
Power factor
0.98
or more
AC output
Constant
3-phase, 4-wire
Rated voltage
208/120V,
220V, 380/220V, 415/240V, 440V, 480V
Voltage stability
within 1.5%
Rated frequency
60/50
Hz
Frequency stability
within ±0.5% (when inverter free running)
Waveform ratio
3% or less (100% linear load)
Usage rating
100% continuous rating
Overload tolerance
125% 10 minutes
Overall efficiency
88 ~ 93 %
Power factor
0.8
Noise
(dBA)
58
62
65
68
70
72
73
75
78
Transfer time
within 4mS
Allowable temperature
Transformers
125
deg
semiconductors
75 deg
others
45 deg
Battery
Battery voltage
360V (30 cells) standard, selectable from 30 to 40 cells (10-20 cells are optional))
Charging voltage
405V
(standard)
Rated voltage
360V
(standard)
Final discharge voltage
315V
(standard)
Communication
RS-232, 485, 422, SNMP support (Option)
Enclosure coating
EA404K
Dimensions
Width
500mm
500mm
700mm
800mm
1000mm
1100mm
1400mm
1520mm
2200mm
2400mm
2600mm
Depth
655mm
655mm
825mm
925mm
925mm
925mm
925mm
925mm
960mm
1000mm
1000mm
Height
1050mm
1150mm
1400mm
1500mm
1600mm
1700mm
1900mm
1900mm
1900mm
2000mm
2000mm
※ The above specifications are subject to change for quality improvement.
